  Versalift Bucket Trucks

Versalift VO-255 / 260-I Insulated
Articulated Overcenter Aerial Bucket Trucks

Versalift VO-350 Brochure Bucket Truck VO 260 Versalift



INCREASED OVERALL REACH AND CAPACITY
The Versalift VO-255/260 offers up to 65 feet of working height, 50 feet of side reach and up to 400 lbs of platform capacity, allowing you to reach higher and farther than ever before. Productivity is also increased because the amount of chassis setups that must be done in order to achieve the right positioning can be kept to a minimum. The overall versatility of the VO-255/260 makes it the premier equipment for the tree industry, providing users with the greatest reach capacities available on the market today.

VO-260ILOWER LIFECYCLE COSTS
There is no mandatory rebuild on the Versalift VO-255/ 260 because it is designed and built to last. Besides reducing lifecycle costs in pure dollars and cents, the Versalift VO-255/260 also gives superior reliability and serviceability over time.

BUILT-IN SAFETY FEATURES
Safety is always our top priority, so every Versalift VO-255/260 is equipped with dual pin retention. This
redundant safety feature provides the assurance that all pins stay securely in position.

VERSATILE DESIGN WITH CUSTOM APPLICATIONS
There is a Versalift VO-255/260 to meet every tree trimming application and to accomodate the specific needs of every customer, regardless of where you work and your different work practices. The Versalift VO-255/ 260 can be installed with countless varieties of chassis, body and power configurations, along with a wide selection of options for the aerial device itself.

DIELECTRIC INTEGRITY
Ensuring that dielectric integrity is maintained is a necessity. Through the use of TIME’s patented “Electrogard” the Versalift VO-255/260 maintains a 24 inch insulation gap at all times, allowing you to achieve complete insulation in any boom position, including fully stowed.

DECREASED INSPECTION TIME
Inspection time is reduced through the effective use of torque stripe on all critical fasteners. Operators may quickly perform a visual walk around inspection of the Versalift VO-255/260 prior to use to determine if all bolts are securely fastened and the unit is safe for mechanical operation.

GENERAL SPECIFICATIONS ((Based on 40 in. (1.02 m) Frame Height))

  VO-255-I VO-260-I
Horizontal Reach, Overcenter 46 ft 2 in (14.1m) 50 ft 8 in (15.4m)
Maximum Platform Capacity 400 lbs (181kg) 350 lbs (159 kg)
Lower Boom Lift Eye Capacity 1500 lbs (680kg) 1500 lbs (680kg)

With Standard Reverse Mount Pedestal
Height to Bottom of Platform 55 ft 4 in (16.9m) 59 ft 10 in (18.2m)
Working Height 60 ft 4 in (18.4m) 64 ft 10 in (19.8m)
Stowed Travel Height 11 ft 9 in (3.58m) 11 ft 9 in (3.58m)

Hydraulic System
Operating Pressure 2900 PSI (205 kg/cm2) 2900 PSI (205 kg/cm2)
Flow Rate 7 GPM (26 lpm) 7 GPM (26 lpm)
Filtration 10 micron return 10 micron return
System Type Open center Open center
Power Source PTO Pump PTO Pump

VO260I Travel

*NOTE:

  1. Specifications may vary without prior notification
  2. Required GVWR can vary significantly with chassis, lift mountings location, service body, accessories, and desired payload.

OPTIONS:

  • Tilt Platform
  • Platform Size Variations
  • Increased Platform Capacity
  • Lifting Eye Attachment
  • Two-Speed Throttle Control

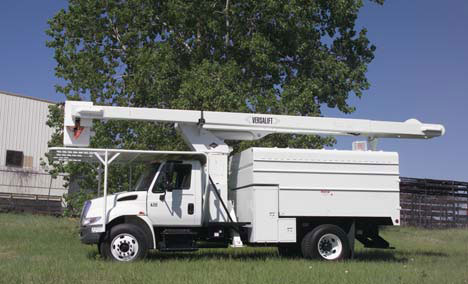

VO-255I Bucket Truck
Boom Knuckle Protects Cylinder
Versalift Bucket truck
Compact Travel Height in Stowed Position.
