New Utility Tool & Trailer - Reel, Pole, & Cargo/Combo Trailers

Utility Tool & Trailer, Inc.

The year was 1935, and in the small Wisconsin town of Clintonville, a man named Arthur Giersbach had a radical idea: he would create a line of specialty equipment exclusively for phone and electrical line contraction companies. Calling his business the Utility Tool and Body Company, Inc., Arthur’s concept was simple: by concentrating on this niche market, he could deliver to his customers a line of equipment tailor-made for their needs. 70 years later, UTT is a lot larger and a whole lot better. Their niche markets now cover military, commercial, utility and service/support industries. Their cornerstone of delivering a better line of time-tested trailers and equipment is still at the core of everything they do.

Cable Reel Trailers  - 10, 500 lbs, capacity designed for transporting and handling three large cable spools with six foot reels, sixty inch wide and six feet in diameter spools.

  • Hydraulic loading cable reel trailers
  • Standard reel size capacities to 120”
  • Multi-reel trailers
  • Reel brake options
  • Standard reel transport trailers
  • Hydraulic take-up options
  • Standard capacities from 2500 lbs to 8000 lbs per reel

HL–Model Cable-Reel Trailer

  • Hydraulic loading via hand or electric / hydraulic pump
  • Torsion axle
  • Capacity: 5000 lbs. – 6500 lbs.
  • Rear-stabilizer jacksHL Cable Reel Trailer
  • Crank-type tongue jack
  • Adjustable towing eye - 3”
  • Wheel chocks
  • Electric brakes and breakaway
  • Maximum reel diameter: 96”
  • Maximum reel width: 60”
  • (2) Reel collars
  • 9” Anti-backlash or 16” reel brake available
  • Mud flaps

MR–Model Multi-Reel Trailer

  • Torsion axles
  • Capacity: 10,500 lbs. to 15,000 lbs.
  • Length overall: 27’
  • Width overall: 96”Multi Reel Trailer
  • Width between fenders: 60”
  • Expanded metal cargo floor
  • Rear stabilizer jacks
  • 10,000 lbs. fixed-tongue jack
  • Adjustable towing eye - 3”
  • Wheel chocks
  • Electric brakes and breakaway
  • Maximum reel diameter: up to 120”
  • Maximum reel width: 54”
  • Bronze spindle bar inserts
  • 16” Reel brakes available

Pole Trailers - 4,000 to 10,000 lbs. capacity designed to transport line poles with fixed or extendable lengths and fixed or adjustable towing connection.

  • Pole dinkeys
  • Standard trailer lengths up to 30’
  • Extendable tongue trailers
  • Standard trailer capacities from 4000 lbs to over 10,000 lbs
  • Fixed tongue trailers

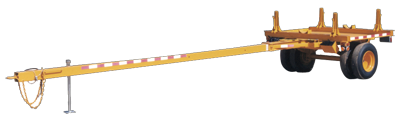

H Pole Trailers

  • 10,500 lbs. payload
  • 29.5’ extended length
  • Single 15,000 lbs. dual-wheel axle
  • (4) Sliding stanchions
  • Tongue jackH Pole Trailer
  • Wheel chocks
  • Electric, air or air over hydraulic brakes
  • Tongue-mounted bolster available
  • Web strap binders or cable binders available
  • Cat-track wiring inside tongue
  • Full width cargo floor or fenders with narrow floor
  • Galvanized finish available
  • Available with fixed tongue

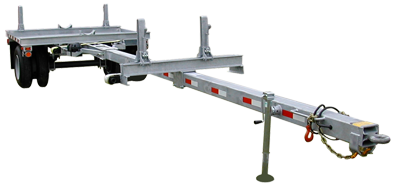

M Pole Trailers

  • 6,000 lbs. payload
  • 29.5’ extended length
  • Single 10,000 lbs. dual wheel axleM Pole Trailer
  • (4) Sliding stanchions
  • Tongue jack
  • Wheel chocks
  • Electric, air or air over hydraulic brakes
  • Tongue-mounted bolster available
  • Web strap binders or cable binders available
  • Cat-track wiring inside tongue
  • Full width cargo floor or fenders with narrow floor
  • Galvanized finish available
  • Available with fixed tongue

Cargo/Combo Trailers - Various cargo bed sizes and configurations. Standard capacities from 2000 lbs to over 10,000 lbs. Reel rack options available. Fixed and extendable tongue trailers.

1-Ton Cargo Trailer

  • 3,500 lbs. Torflex axle
  • Capacity: 2000 lbs.
  • 1 ton cargo trailer
  • Crank-type tongue jack
  • Removable end gate
  • Wheel chock holders and holders
  • Diamond plate bed and fenders
  • Electric brakes and breakaway
  • Safety chains
  • Mud flaps

2-Ton Cargo Trailer

  • 6,000 lbs Dexter axle
  • 2 ton cargo trailer
  • Capacity: 4500 lbs.
  • Crank-type tongue jack
  • 3 Winch strap binders
  • Wheel chock holders and holders
  • Diamond plate bed and fenders
  • Electric brakes and breakaway
  • Safety chains
  • Mud flaps

C10 Combo Trailer

    Combo Trailer
  • 7,000 lbs. Torflex axles (2)
  • Capacity: 10,500 lbs.
  • Cat-track wiring inside tongue
  • 10,000 lbs. Drop-leg tongue jack
  • Adjustable towing eye
  • Wheel chocks
  • Utility Combo Trailer
  • Electric brakes and breakaway
  • Tongue-mounted adjustable bolster
  • Extended length: 29’ 6”
  • (2) 4” Strap binders (at bolsters)
  • Safety chains
  • Mud flaps
